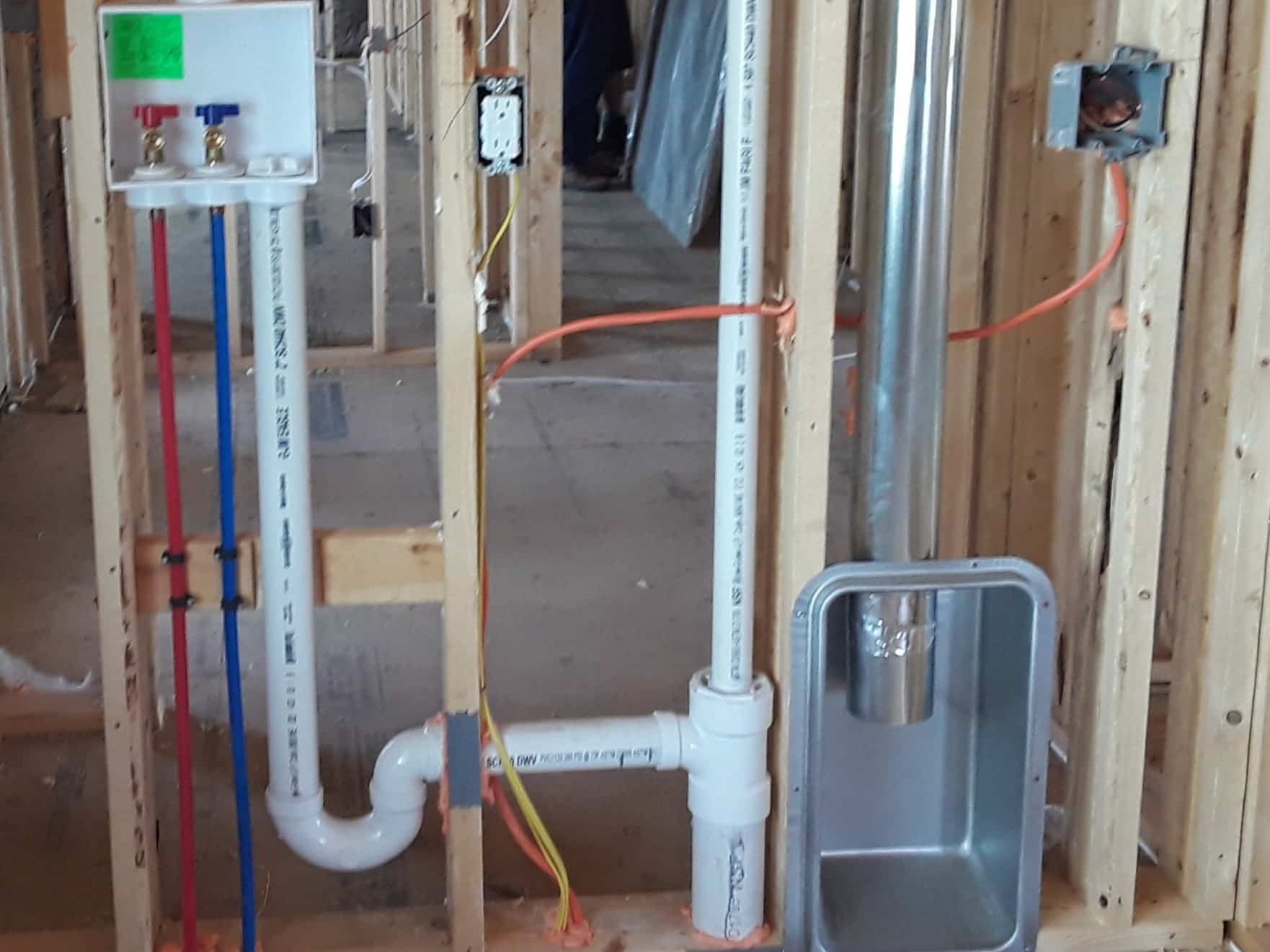

Basement Drain Install Planning for Laundry and Utility Rooms

Key Takeaways About Basement Drain Install

Basement drain install covers the code needs slope trap primers and tie-in planning for laundry and utility room drains. This guide is for homeowners and property managers planning work or noticing smells gurgling or slow drains.

• Identify existing cleanouts vents and invert elevations before cutting.
• Prevent trap siphoning by ensuring proper slope and venting.
• Avoid dry traps by choosing and locating the right trap primer.
• Spot signs like gurgling odors and slow laundry discharge early.
• Reduce future maintenance by adding accessible cleanouts and testing.
• Plan tie-ins with camera inspection and low pressure testing first.

Introduction

Basement drain install projects often hinge on code needs, proper slopes, and reliable trap primers to prevent sewer gas. Homeowners hear gurgling, slow drains, or basement odors when these elements are missing or wrong. These problems matter because they can cause water damage, mold, and health risks over time. In many cases the visible symptom hides a compliance or connection issue that needs fixing.

Correct pipe slope controls how water and solids flow toward the main line and prevents standing water in laundry and utility rooms. Local codes dictate minimum slopes and venting, and inspectors look for consistent fall and accessible cleanouts. A poorly sloped line can back up appliances and stress a sump or backwater valve. Knowing the slope and inspection points helps you avoid repeat clogs and costly repairs later.

Trap primers keep P-traps full so sewer gas cannot enter finished spaces and they matter in rarely used drains common in basements. Without a primer a P-trap can dry out and let odors into the home even if piping otherwise meets code. Professionals check trap primer types, access for maintenance, and whether automatic or mechanical primers fit the layout. Proper primer selection reduces nuisance odors and improves occupant comfort.

Tying new basement drains into existing lines requires careful planning around vent stacks, cleanouts, and downstream capacity. A plumber will inspect the main drain, test for blockages, and identify where to add fittings or cleanouts without compromising venting. Homeowners in Maryville, TN and Sevierville, TN should watch for recurring slow drainage or sewage smells as signals to call a pro. If you notice those signs, a licensed plumber can diagnose the problem and recommend compliant repairs.

Basement Drain Install Code Requirements Explained

Basement drain install refers to the code-driven requirements and inspections for new floor or laundry drains in below-grade spaces.

• Minimum slope must allow gravity flow.
• Accessible cleanouts must be provided.
• Vent connections must preserve trap seal.
• Trap primers may be required for infrequently used traps.

Most codes require a minimum slope so wastewater moves without pooling, and inspectors look for that during permit reviews. A common homeowner question asks whether a drain must slope, yes, minimum fall prevents standing water that invites clogs and odors. Inspectors also verify venting and cleanout placement to allow safe inspection and snaking when needed. If a vent is missing the trap can siphon dry under certain flow conditions.

Trap primers are often mandated for basement floor drains that sit unused for long periods to prevent sewer gas entry. You can read more about how pros choose and install these devices at the trap primer install resource. A plumber will confirm whether a mechanical or pressure-activated primer suits the layout before connecting it. Proper primer access for service is an inspector focus during final checks.

When tying into existing lines codes require checking downstream capacity and locating the nearest cleanout or vent stack. A professional will perform a visual inspection, dye or water tests, and use a camera to confirm the downstream condition before tapping the line.

How Basement Drain Install Gravity And Slope Work

Gravity and slope control how quickly water clears a basement drain and how often solids settle inside the pipe. Plumbers size the pipe and establish fall so water keeps moving, using a straight run where possible to avoid turbulence. During a job they measure fall with a level and tape, mark grade points, and confirm slope meets the applicable code for the pipe diameter. Visible signs of poor slope include standing water at the drain and repeated slow drainage after laundry cycles.

Proper slope also affects venting behavior and trap performance by preventing siphoning or backflow from downstream surges. A professional tests for siphon conditions by running water through fixtures while observing trap seals and vent response. Camera inspection helps confirm whether the slope creates pockets where debris gathers and whether roots or scale reduce effective fall. If a camera shows sediment buildup, the tech will recommend regrade, pipe replacement, or targeted cleaning to restore consistent gravity flow.

When connecting new floor drains to existing lines, the tie-in elevation matters more than the connection type to maintain gravity drainage. Installers locate the main line using cleanouts, measure invert elevations, and choose a connection point that preserves required slope downstream. In some cases they raise the new drain or drop a short section of pipe to achieve continuous fall without reverse pitch. Homeowners in Maryville, TN sometimes notice gurgling in nearby fixtures, which prompts a pro to confirm invert alignment and downstream capacity before final tie-in.

Routine maintenance preserves designed slopes and prevents odors or backups that trickle back into basements over time. Simple checks include watching how quickly a wash cycle empties and inspecting floor drain grates for trapped debris that slows flow. Professionals often combine a slope check with a drain camera and a test flush, producing written findings and photos to explain needed repairs. For recurring slow drains and odor issues, consider scheduling a camera inspection and preventive service like the drain cleaning and maintenance option mentioned in our preventive plumbing service resource.

When To Call A Professional For Basement Drain Install

If you notice persistent gurgling, repeated backups, or sewage odors despite cleaning, call a professional to evaluate larger system causes. A plumber will perform a visual inspection, use a pressure test on suspect lines, and likely run a camera to confirm blockages or improper connections. They will also check cleanouts and the main line for access, and assess whether an upstream restriction forces backups. For homeowners in Maryville, TN these symptoms often require a diagnostic camera and line examination before any tie-in work begins.

Call a pro when you plan to alter pipe elevations or connect near a vent stack since incorrect tie-ins can create siphoning and code violations. The technician measures invert elevations, confirms slope continuity, and determines whether the new drain can maintain gravity flow without additional fittings. They will check for the nearest accessible cleanout and may recommend installing or relocating one to simplify future service. If downstream capacity looks marginal, the plumber discusses options rather than proceeding without confirmation.

Engage a professional when trap primer selection and placement affect multiple drains or when traps repeatedly dry despite attempted fixes. A plumber evaluates primer types, inspects existing trap seals, and tests primer activation during simulated use to confirm reliability. They will also verify that primer installation will not compromise venting or create cross-connections that invite contaminants. In complicated layouts a pro may propose alternative odor control strategies alongside primer installation.

Hire an expert before cutting into the main or performing a tie-in if no cleanout or clear access exists, because that decision affects future maintenance. The contractor may recommend installing a dedicated cleanout or installing a new cleanout run to the nearest access point and can perform that work to ensure compliance. For projects where downstream cleaning or frequent service is likely, consider adding a cleanout during the initial install to avoid invasive work later, such as a sewer cleanout install. If the situation involves backups, a professional can provide written findings and a recommended action plan.

Common Causes Of Basement Drain Backups And Failures

A common cause of basement drain backups is progressive sediment and lint buildup that narrows the pipe diameter over time. Homeowners often notice slow drainage after laundry cycles or a faint sewer smell near the utility sink. A professional diagnoses this by running a camera inspection and measuring remaining pipe diameter and blockage extent. They may also perform a dye test to confirm flow direction toward the main line.

• Grease and soap scum restrict flow.
• Lint and fibers collect after laundry cycles.
• Mineral scale reduces internal diameter.
• Collapsed or crushed pipe impedes flow.
• Root intrusion can block older lines.

Improper slope or dropped invert at a tie-in point causes repeated pooling and waste buildup instead of steady flow. Professionals check invert elevations and slope continuity with a level and measure before recommending regrade or pipe replacement. Visible signs include water that never fully clears and backing into the floor drain after machine discharge.

Failed or missing trap primers let traps dry and allow sewer gas odors to enter the room intermittently. A plumber tests trap seals and primer function by simulating periods of nonuse and observing whether the P-trap retains water. If primers are inactive, they inspect the supply line, check valve, and any mechanical timer that controls activation.

Blocked downstream mains or absent cleanouts can force backups back into basement drains during high flow events. Technicians look for accessible cleanouts and may run a mainline snake or camera to locate the blockage before tying in a new drain. They record footage and provide written findings to confirm whether the issue is local or downstream. This diagnostic evidence guides decisions about installing a backwater valve, relocating a tie-in, or upsizing the drain to prevent recurrence.

Trap Primers How They Work And When To Use

Trap primers work by adding a small, controlled amount of water into a P-trap to maintain the seal and block sewer gas. Mechanical primers use pressure changes from nearby fixtures to move water, while electric or mains-fed primers add water on a timer or sensor. A professional inspects the trap, primer supply, and check valve to confirm activation and proper flow without backflow risk. Diagnosing a primer issue often starts with observing odor patterns and measuring trap water levels over a few days.

Technicians test primer performance by simulating periods of nonuse and then checking trap depth and seal retention with a simple dye or water mark. They also trace the primer feed line to ensure no cross-connection exists and verify that the check valve functions under pressure. Camera inspection of nearby drains can reveal whether dry traps result from siphon events or primer failure. For homeowners in Maryville, TN, a recurring dry trap often indicates a faulty primer feed or an intermittent siphon from adjacent fixtures.

Install location and primer type depend on drain use frequency and nearby fixture activity, so experts consider laundry discharge patterns and utility sink cycles. In some setups a small automatic primer ties to a laundry box or hot water line to refill floor drain traps after wash cycles. Professionals weigh the pipe material and route when planning the primer feed, often referencing recommended pipe options and connections in related resources. For basements prone to occasional standing water, pairing a primer with a properly sized sump pump provides combined protection during heavy events.

When deciding whether to add a primer, a technician performs a diagnostic sequence: inspect trap depth, run appliances, observe trap response, and test primer activation under normal conditions. They document findings with photos and measurements and may recommend a primer only if traps dry despite proper slope and venting. If a primer is selected, the installer ensures accessible service points and avoids tying the feed into systems subject to pressure fluctuations. For properties in Sevierville, TN, this diagnostic approach prevents unnecessary installations and targets the actual cause of odors or dry traps.

Tying Into Existing Lines Best Practices And Checks

When tying into an existing line, locate the nearest accessible cleanout and verify its condition before cutting into the pipe. A plumber measures invert elevations at the cleanout and at the proposed tie to confirm continuous fall and avoid a reverse pitch. They will also check for nearby vents and review how the tie may affect venting and trap behavior under load. If visible corrosion or offset joints exist, the tech documents those issues for the homeowner before proceeding.

Before making a connection, confirm downstream capacity by running a controlled test flush and observing flow through the cleanout opening. Camera inspection often follows to show internal conditions like sediment, roots, or scale that could block flow after the new tie-in. Technicians compare measured elevation data with camera footage to choose the tie method that preserves slope and reduces future maintenance. Homeowners in Maryville, TN may find this diagnostic evidence helpful when deciding whether to proceed.

Select the appropriate fitting type based on pipe material and access, using a saddle, wye, or full tee only where code permits and where slope remains uninterrupted. Cut-in fittings must sit at the correct invert depth, and installers frequently add a nearby cleanout to ease future service. Ensure all joints receive proper support and that the connection avoids creating air pockets that encourage siphoning. For complex vent interactions, consult a specialist who can balance flow and vent performance during tie-in planning.

After the physical tie, test the new run with a low-pressure water test and camera pass to confirm no leaks and smooth internal flow toward the main. Inspect the trap and primer function under simulated use to ensure the tie did not alter venting or cause trap seal loss. If balancing of vents is needed, reference guidance on vent behavior and balancing in the drain vent balancing resource during the final inspection. For recurring odor issues, homeowners in Sevierville, TN should request a written report showing test results and recommended adjustments.

DIY Preparations Before A Basement Drain Install Project

Clear the work area and protect floors before any cutting or digging begins to avoid accidental damage to concrete or finishes. Mark the proposed drain location and the route to the nearest cleanout so installers can verify invert elevations quickly. Move appliances and store boxes away from the workspace to allow unobstructed access for tools and measuring devices. Take photos of the existing drain and nearby piping to share with the plumber for pre-job planning and permit discussions.

• Locate and label existing cleanouts.
• Measure finished floor height at the drain location.
• Confirm access to electrical outlets for pumps or electric primers.
• Note nearby slopes and finished walls that may need protection.

Shut off related appliances and isolate supply lines to prevent accidental discharge during the install process. Prepare a clear route for a sump pump discharge or temporary hoses if water must be diverted during work. Have basic tools and supplies available such as a flashlight, buckets, and towels for minor spills during diagnostic checks. Notify household members about noise and access restrictions while work is in progress to reduce interruptions.

Record any odors, gurgling sounds, or slow emptying you have observed and when they occur to help the professional diagnose intermittent issues. A plumber will use those observations alongside camera footage and invert measurements to confirm tie-in feasibility and primer needs. Share any previous repair records or photos from past maintenance to speed assessment and avoid duplicate work. For homeowners scheduling inspections, review recent code updates at the new plumbing codes in Tennessee resource so you understand permit expectations.

Plan for temporary relocation of laundry cycles or utility use during the install to prevent accidental backups while lines are opened. Expect the technician to perform a pre-install camera pass and low-pressure test once you clear access, which confirms downstream condition before tie-in. Ask the contractor for a written scope and any recommended cleanouts to add for easier future maintenance. Homeowners in Sevierville, TN and Maryville, TN benefit from documenting these preparations to streamline permitting and onsite diagnostics.

Preventive Maintenance Tips To Extend System Life

Schedule routine inspections of floor drains and trap primers every 6 to 12 months to catch early wear and blockages. During an inspection, a technician looks for slow drawdown, odors, and signs of mineral buildup inside the trap. They will also check cleanouts and test trap primer activation under simulated nonuse conditions. Documenting findings helps prioritize repairs before small issues become failures.

Keep drain grates and laundry connections free of lint and debris to reduce sediment buildup that shortens pipe life. Clean the laundry box and the washing machine standpipe area while inspecting the washing machine supply lines to ensure lint and soap do not enter the floor drain. A homeowner can remove visible lint and wipe around the drain after each laundry day to prevent gradual accumulation. Persistent lint near the grate signals a professional camera inspection is needed.

Test trap primers and P-traps by pouring a measured cup of water into drains not used often and checking seal retention after 24 hours. If the trap loses water, a plumber will trace the cause, checking for siphon issues, faulty primer check valves, or improper venting. Technicians use a dye test and pressure checks to confirm whether loss is due to evaporation or a plumbing defect. Addressing the root cause prevents recurring sewer gas entry and preserves indoor air quality.

Maintain easy access to cleanouts and document their locations so technicians can respond quickly when service is needed. Marking cleanout positions and keeping the area clear avoids destructive access methods during emergencies. When planning upgrades, consider adding an accessible cleanout or relocating tight fittings to simplify future maintenance. Homeowners in Maryville, TN and Sevierville, TN benefit from a small written maintenance plan that outlines inspection timing and service contacts.

Frequently Asked Questions

How does basement drain install affect laundry appliance discharge?

A proper basement drain install ensures laundry appliance discharge flows to a drain or sump without backing up into the washer drain pan. Plumbing must maintain correct slope and include a trap to prevent sewer gas and slow drainage from the appliance. If the washer ties into existing lines, a check valve or separate standpipe may be required to prevent cross-connection and backflow. If you see slow drains or odors, stop use and call a professional plumber to inspect and correct the connection safely.

What minimum slope is required for a basement drain install?

Most codes require a minimum slope of 1/4 inch per foot for horizontal drainage when installing a basement drain.
For 2-inch drains serving laundry or utility fixtures, maintain that 1/4 inch per foot slope toward the building drain.
If conditions force shallower runs, a licensed plumber should review venting and trap arrangements to avoid backups.
If you see standing water or slow flow, stop work and call a professional because improper slope can cause sanitary and safety hazards.

When is a trap primer required for a basement floor drain?

You need a trap primer for a basement floor drain when the drain sees infrequent flow and the trap risks drying out. Building codes like the IPC or UPC often require primers where vents or usable fixtures are absent. A professional will inspect trap seal depth, venting, and nearby fixture use to confirm the requirement. If standing odors or sewer gas appear, stop use and call a licensed plumber to install or test the primer safely.

How do plumbers diagnose slow basement drains and odors?

A plumber starts by asking about symptoms like slow drainage, gurgling sounds, or sewer smells and notes when they occur. Then they inspect visible traps, cleanouts, and the laundry drain opening for standing water or debris. Next they run simple tests such as a dye or water flow check, use a drain camera if needed, and measure slope and venting. If sewer gas or backflow appears likely, stop use and call a professional because those conditions can present health and property risks.

What steps ensure a proper tie-in to an existing main line?

Locate and expose the existing main line and clean the area so a proper saddle or wye connection can fit flush. Verify pipe material and diameter to select compatible fittings and transition couplings. Maintain required slope and install a cleanout at the tie-in for future access and inspection. If work involves cutting live sewer lines or confined spaces, stop and hire a licensed plumber to avoid hazards and code violations.
