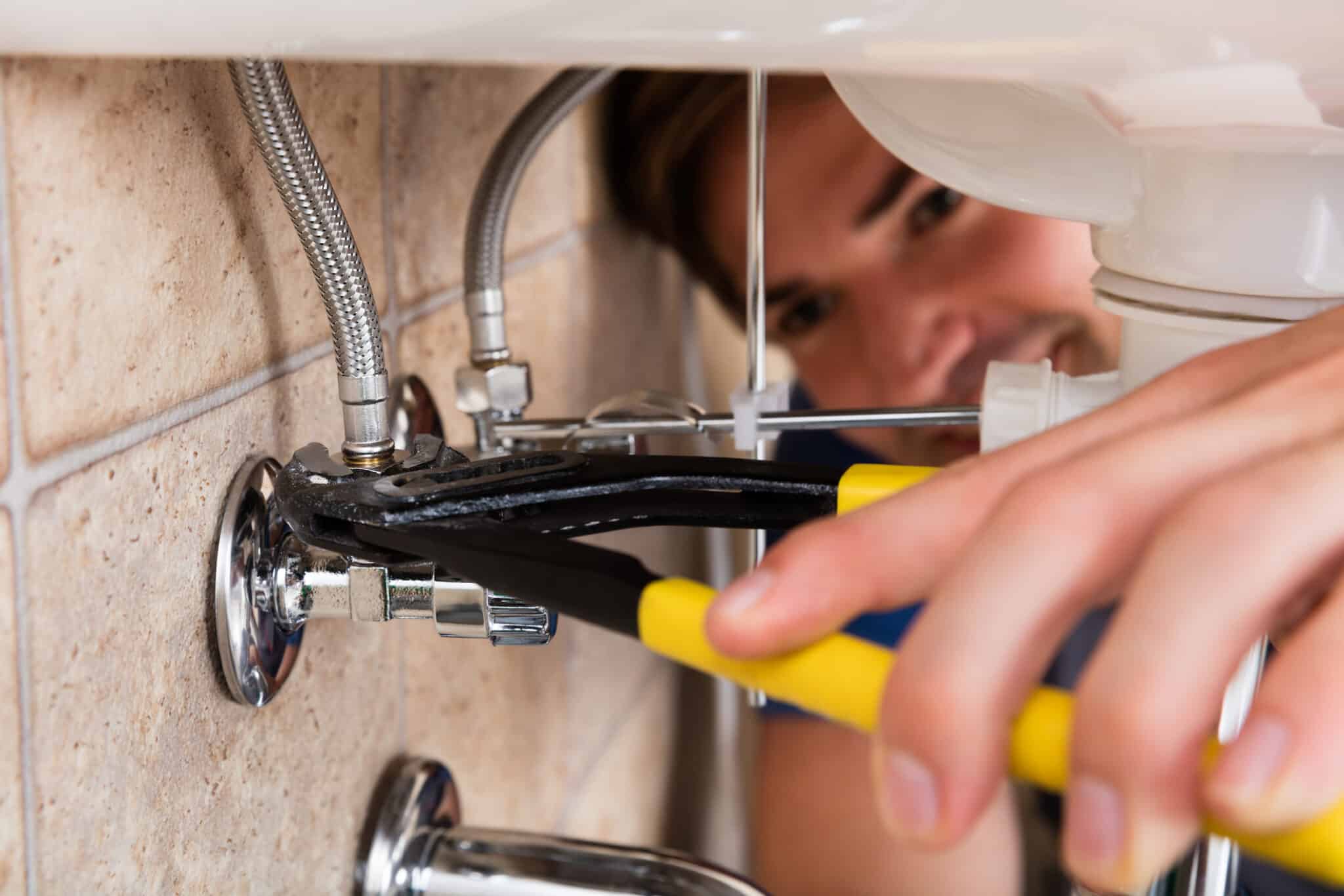

Angle Stop Replacement to Cure Under Sink Drips

Key Takeaways About Angle Stop Replacement

An angle stop replacement is swapping a small shutoff valve under a sink to stop leaks and restore isolation. This guide is for homeowners and property managers who notice drips or damp cabinets and need clear next steps.

• Identify whether the valve body or supply line is the leak source.
• Prevent damage by testing shutoffs regularly and documenting results.
• Avoid mistakes by using the correct ferrule and compression nut.
• Spot corrosion stains or musty odors as early leak indicators.
• Reduce future maintenance by choosing quarter turn ball valves.
• Plan for professional help when corrosion or structural damage exists.

Introduction

Under-sink drips often come from worn shutoff valves that no longer seal properly. Homeowners see steady slow leaks or occasional puddles that appear after using sinks. These tiny leaks waste water and can damage cabinets, flooring, and stored items. Knowing why shutoffs fail helps prevent recurring problems and surprise repairs.

Many shutoffs fail from internal corrosion, mineral build up, or rubber seat deterioration over years of use. Supply line stress and loose packing nuts also cause slow weeps at connections. You may notice dripping starts after a holiday or when a fixture is used less often. Catching the cause early can limit water damage and repair scope.

Upgrading to a quarter turn angle stop can stop common failure modes by using simpler ball or washer designs. Quarter turn valves usually give a positive open or closed feel that makes testing easier. They also reduce the risk of hidden leaks behind damaged packing nuts or worn stems. Replacing a failing valve avoids repeated shutoffs that fail when you most need them.

When symptoms persist, a professional will inspect the shutoff, supply line, and faucet connection to confirm the source. For properties in Maryville, TN and Louisville, TN small leaks can worsen in older cabinets or tight crawl spaces. A clear diagnosis shows whether a simple replacement or a larger repair is needed. If the leak poses a risk to structures or electrical components contact a licensed plumber for safe repair.

How Angle Stop Valves Work And Why It Happens

An angle stop valve is a small shutoff device that controls water to a single fixture at a 90-degree connection. These valves use a stem, seat, and packing or a ball mechanism to open and close flow. Homeowners often ask whether the valve itself or the supply line causes under-sink drips, and the valve is the common culprit when the stem or seat wears. A simple visual and tactile check usually answers whether the stop needs replacement or further plumbing work.

• Stem and packing control seal at the valve body.
• Seat or washer provides the internal shutoff surface.
• Supply line connections attach with compression or nut fittings.
• Valve body can corrode from mineral-rich water.
• Rotation type affects wear and ease of use.

Angle stops come in multi-turn and quarter turn styles, and each works differently inside. A multi-turn uses a threaded stem pressing a washer or seat against flow to stop water. A quarter turn uses a ball or cartridge that aligns a port to open or close with ninety degrees rotation. Homeowners in Maryville, TN sometimes notice multi-turn stems feel stiff or wobble before they start leaking.

Failing components produce specific symptoms that point to angle stop replacement rather than faucet repair. Visible dripping at the valve body, wet cabinets under the shutoff, or a valve that leaks after being tightened are strong signs. A professional diagnosis often includes closing the valve, checking for movement at the stem, testing with a pressure gauge, and inspecting the compression fitting and supply line for corrosion. For related faucet problems and when the leak appears to come from the fixture, consult faucet leak repair services for a complete check.

Common Reasons Shutoffs Fail And When To Act

Age and mineral buildup are common reasons shutoffs stop sealing properly. Over years, scale narrows passageways and prevents the seat from seating fully. Corrosion can pit the stem or body and create paths for slow leaks to form. Homeowners often miss these signs until moisture harms cabinet surfaces or stored items.

Wear of internal seals and washers also causes failure, especially in multi-turn valves with many cycles. A worn washer lets water bypass the seat even when the valve seems closed. Tightening a packing nut may temporarily reduce stem weep but does not fix internal seal failure. If water continues to appear after adjustments, replacement is the long-term solution.

Mechanical damage from overtightening or stress on supply lines contributes to leaks at connections and compression fittings. Bent or kinked supply lines can pull on fittings and crack ferrules over time. A professional diagnosing the problem will check the compression nut, remove the supply line, and inspect the ferrule and valve outlet for damage. This inspection also clarifies whether a faucet issue requires separate work, such as related faucet installation service.

Environmental factors and infrequent use speed valve decline in some homes in Maryville, TN and Louisville, TN. Stagnant water in rarely used valves accelerates mineral deposits and seals sticking open or closed. A plumber confirming a failing stop will test by isolating the valve, observing for drips, and using a simple pressure or leak test to confirm continuity of the leak. When the valve shows internal failure, an angle stop replacement with a quarter turn model is often recommended.

Identifying Warning Signs Of Under Sink Drips

Look for steady dampness that increases after you use the sink or run hot water, since temperature changes can reveal a slow path. Smell and staining often appear before obvious puddles, especially musty odors or darkening wood near the shutoff area. A visible ring of mineral deposits under the valve body often signals an ongoing drip rather than one-time condensation. Check for peeling cabinet finish or swollen particle board that indicates moisture exposure over weeks.

Operate the shutoff and watch for any weep from the stem while the valve is closed, because stem leaks point to packing or internal seal failure. Listen for a faint trickle when the valve is supposed to be off, sound can reveal tiny leaks behind insulation or supply lines. If the supply line or ferrule feels loose when nudged, the compression fitting may no longer seal. Professionals sometimes use a simple pressure gauge to confirm whether a closed valve still allows flow through the outlet.

Try placing a dry paper towel around the joint and check it after several hours to catch intermittent leaks that only show under certain conditions. If corrosion flakes or greenish residue appear around copper fittings, that suggests metal breakdown and a higher chance of future failure. Infrequent use often hides problems, so test valves that serve guest bathrooms or rarely used fixtures to reveal hidden leaks. For sink-related issues where the leak seems to come from the faucet assembly, consider coordinating with faucet repair specialists to avoid duplicate work by scheduling both services together.

When visual checks and simple tests point to the angle stop, a professional will perform a diagnostic sequence to confirm and plan repair steps. They will isolate the valve, remove the supply line, inspect the ferrule and valve outlet, and record findings in a brief report for you. For homeowners in Maryville, TN and Louisville, TN with limited cabinet access, that documented inspection helps decide whether replacement or further wall repairs are needed. If damage risks electrical components or structure, contact a licensed plumber to handle the job safely and efficiently.

Tools And Materials Needed For Replacement

Gathering the right tools and parts makes angle stop replacement safer and faster for a homeowner tackling the job. You will need basic hand tools, replacement valves, and materials to reseal or reconnect supply lines after removal. Include a small bucket and towels to control drips while you work, and gloves to protect hands from sharp edges and mineral deposits. Plan around cabinet access and lighting so you can see fittings clearly during each step.

• Adjustable wrench for compression nuts and valve bodies.
• Channel-lock pliers for stubborn fittings.
• Replacement angle stop valve, multi-turn or quarter turn as chosen.
• New supply line if the old one shows damage.
• Plumber’s tape and a small cloth for final wiping.

Choose replacement valves rated for potable water and with compatible connection types for your existing plumbing. Brass bodies with brass compression fittings commonly match copper or plastic supply lines without adapters. If you pick a quarter turn model, confirm the outlet size and thread type to avoid mismatches when reconnecting the supply line. Bring the old valve to the store if you must match unusual fittings or ferrule sizes precisely.

Include a replacement ferrule and compression nut in case the old ferrule is deformed from removal or visible corrosion exists. A small flashlight and inspection mirror help check the valve outlet and ferrule seating in tight cabinets. If you plan to test pressure or confirm isolation before work, a basic pressure gauge or a helper to run the fixture makes the test straightforward. For coordinated faucet work during valve replacement, consider scheduling a faucet repair visit through the faucet repair service page to avoid duplicate trips.

For homeowners in Maryville, TN this tool list covers most under-sink scenarios and reduces surprises during the swap. Homes in Louisville, TN sometimes have limited under-sink space, so compact wrenches and short-profile valves help access tight areas. If you see severe corrosion, damaged shutoff threads, or suspect the shutoff feeds multiple fixtures, stop and call a licensed plumber because those conditions raise the risk during replacement. A professional can also provide a short inspection report and confirm the correct valve choice for your system.

Step By Step Angle Stop Replacement Guide

Shut off the main supply or local feed and open a faucet to relieve trapped pressure before starting work on the angle stop replacement. Place a bucket under the valve and remove the old supply line by loosening the compression nut while supporting the valve outlet with a wrench. Inspect the old ferrule and compression nut for deformation and discard them if they show grooves, corrosion, or thinning. If the valve stem turns freely but water still moves, that inspection confirms internal seat failure and justifies removal.

Hold the valve body with one wrench and turn the compression nut counterclockwise with the other to avoid twisting the copper tubing during removal. Remove the valve entirely by unscrewing it from the supply tube, then clean the tube end and deburr lightly with a file if needed to ensure a flat seating surface. Slide the new compression nut and new ferrule onto the tubing in that order, oriented per the replacement valve instructions to ensure a proper seal. Thread the replacement angle stop onto the tube and hand-tighten to align the outlet for the supply line connection.

Use a wrench to snug the compression nut while preventing the valve body from turning, tightening until firm plus about a quarter turn to compress the ferrule without overloading the tubing. Reattach the supply line and confirm the outlet threads or flare match, replace the supply flex if it shows kinks or old washers to avoid a second leak. Slowly open the local feed and watch the joints for a steady stream or weep, then operate the valve closed and open fully to verify smooth quarter turn action if you chose an upgraded model. If you observe any drip at the stem or nut, stop and tighten incrementally while monitoring, persistent leaks suggest damaged tubing or a bad ferrule needing professional attention.

Perform a final check by placing a paper towel under joints and watching for moisture over fifteen minutes while the valve remains under system pressure. Record whether the valve fully isolates flow using a basic pressure test or by noting lack of flow at the faucet when the stop is closed. For homeowners with tight spaces in Louisville, TN replace with a short-profile valve to improve access and future servicing. If you prefer a professional replacement or discover corroded supply tubing, consider scheduling a service and review washing machine valve upgrade guidance for similar valve choices and installation considerations.

Benefits Of Upgrading To Quarter Turn Valves

Upgrading to quarter turn valves reduces the time you spend testing and maintaining under-sink shutoffs because they close and open with a clear ninety-degree motion. The ball-style mechanism inside provides a firmer seal against weeps that often start at worn stems in multi-turn stops. Homeowners notice easier manual checks since a quick quarter-turn confirms isolation without multiple rotations. This makes routine inspections faster and less likely to miss a slow leak during a brief visual check.

Quarter turn valves also lower the chance of packing nut leaks common in older designs by eliminating long threaded stems that wear over time. Fewer moving parts mean fewer failure points from mineral deposits and internal seal wear in hard water conditions. When a valve fails it is usually obvious and isolated, which helps professionals diagnose whether the stop or supply line needs replacement. A clear failure mode simplifies repair decisions during service visits.

Replacing multiple fixtures with quarter turn stops can reduce water loss during emergencies because they reach full shutoff quickly and consistently every time. For some homeowners, swapping the building main shutoff and fixture stops yields coordinated benefit, see guidance on the main shutoff valve for whole-home isolation planning. Fast, positive shutoff also helps when a dishwasher or ice maker connection leaks, limiting water exposure to cabinetry and flooring. In urgent situations a reliable valve saves time and limits damage before a plumber arrives.

They improve user experience for guests and property managers who rarely operate seldom-used fixtures, because quarter turn valves resist seizing from infrequent use. In a common situation, a guest bathroom stop that rarely moves will still operate smoothly and visibly close without multiple turns. Professionals verify function quickly by operating the handle and checking isolation with a simple faucet flow test. For properties in Maryville, TN and Louisville, TN, the reduced maintenance and clearer diagnostics make long-term plumbing care easier to plan.

When To Call A Professional For Valve Replacement

If you see significant corrosion, a valve that will not stop water, or damage near electrical components, call a professional right away. A licensed plumber can assess whether the stop feeds multiple fixtures or ties into older services that require coordinated replacement. Trying complex repairs in tight spaces risks making the leak worse or damaging supply tubing. Professionals also bring appropriate replacement parts for unusual fittings to avoid repeated trips.

• Visible corrosion on the valve body.
• Persistent stem weep after tightening.
• Damaged compression ferrule or tubing.
• Valve that will not fully close.

If the shutoff serves exterior or irrigation lines, a plumber will check downstream components and curb connections before proceeding. They may recommend related work such as curb stop service depending on findings and pressure tests. Accurate diagnosis avoids replacing the wrong component and limits future callbacks. This ensures a single service visit resolves the root cause.

When access is limited or cabinets show structural water damage, hire a pro to protect surrounding finishes and electrical systems. Technicians use inspection tools and pressure checks to confirm isolation without guessing. For properties in Maryville, TN arranging a timed appointment helps coordinate access and minimize disruption. Homeowners in Louisville, TN should keep photos of the valve area to speed remote advice and parts selection.

Preventative Maintenance To Avoid Future Drips

Schedule brief valve checks every six months to catch slow deterioration before it causes visible damage. Operate each shutoff through its full range and listen for trickles while it is closed. Inspect around the connection for fresh mineral rings or dark staining that indicate active seepage. If you spot hidden moisture, consider professional water leak tracing and repair coordination to prevent unseen spread.

Keep a small maintenance log noting valve age, replacement parts used, and any observed stiffness during operation. Replace supply flex lines when they show kinks, bulges, or corrosion rather than waiting for failure. Tighten compression nuts only to firm plus a small turn to avoid crushing the ferrule and weakening the seal. For cabinets with past moisture issues in Maryville, TN document repairs so future occupants know prior conditions.

Flush rarely used fixtures quarterly by opening and closing the valve to move water and reduce scale buildup. Consider switching to quarter turn angle stops if you notice repeated stiffness or if routine cycling is difficult. Use a flashlight to check for hairline cracks or greenish corrosion at copper connections during each inspection. Photograph any concerning findings to share with a licensed plumber for quicker diagnosis during service calls.

When you find persistent damp spots or suspect leaks behind walls, call a pro to confirm the path and limit damage early. A licensed plumber will perform targeted pressure checks, inspect the valve, and trace moisture using diagnostic tools. Early detection and replacement of failing stops reduce the chance of cabinet rot and related structural repairs in Louisville, TN. Keep the contact info for a qualified plumber handy to schedule work when preventive checks reveal issues.

Frequently Asked Questions

Why is angle stop replacement needed for under-sink drips?

Under-sink shutoff valves wear from mineral buildup, corrosion, and internal seal failure that cause persistent drips. Replacing the valve with a reliable part stops leaks at the source and prevents water damage under cabinets. A quarter-turn angle stop replacement often gives a more durable shutoff and easier operation for future maintenance. If connections look corroded or soldered and water damage is present, exercise caution and hire a professional to avoid leaks or wall damage.

How does a quarter turn valve differ from multi-turn stops?

Quarter turn valves use a 90-degree ball or disk to open and close, so they stop flow with one quick motion. Multi-turn stops use a threaded stem you turn many times to open and close, which wears packing and seats over years. Because quarter turn valves seal faster and expose fewer moving threads, they usually fail less often and resist leaks under sinks. If you see corrosion, stiffness, or active leaks, shut the water off and consider professional Angle stop replacement to avoid damage and ensure a proper install.

What signs show the shutoff, not the supply line, is leaking?

A leaking shutoff usually drips at the valve body or where the valve meets the pipe, not along the flexible supply hose.

What tools and parts do I need for angle stop replacement?

You will need an adjustable wrench, slip-joint pliers, a basin wrench for tight spaces, and a thread sealant or plumber’s tape. Bring replacement parts: a new angle stop (consider a quarter-turn model), matching compression nut, and ferrule if the line uses compression fittings. Have a bucket, towels, and a flashlight for water capture and visibility during Angle stop replacement. Caution: if you find corroded supply lines, soldered joints, or uncertain shutoff function, stop and contact a licensed plumber for safety.

When should I call a pro instead of replacing the valve myself?

If the shutoff is corroded to the supply line or breaks when you try to turn it, call a professional. If water stains, mold growth, or soft cabinet wood appear, a plumber should inspect for hidden leaks. If the valve controls a gas appliance, has multiple compressed fittings, or the home has high water pressure, hire a pro. Caution: if you cannot fully stop the water or lack proper tools, shut off the main and contact a licensed plumber.
